Hobbywing EZRUN 3652 SL G2 Motor 3300kv (30402600)

1/10thTouring / Buggy
1/10thlight-duty 2WD Short-course Truck / truck/ monster truck
Features:
Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3652 G2 with a EZRUN MAX10 ESC.
O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
Excellent match between EZRUN 3652 G2 with EZRUN MAX10 guarantees users large torque plus a very smooth and linear power band.

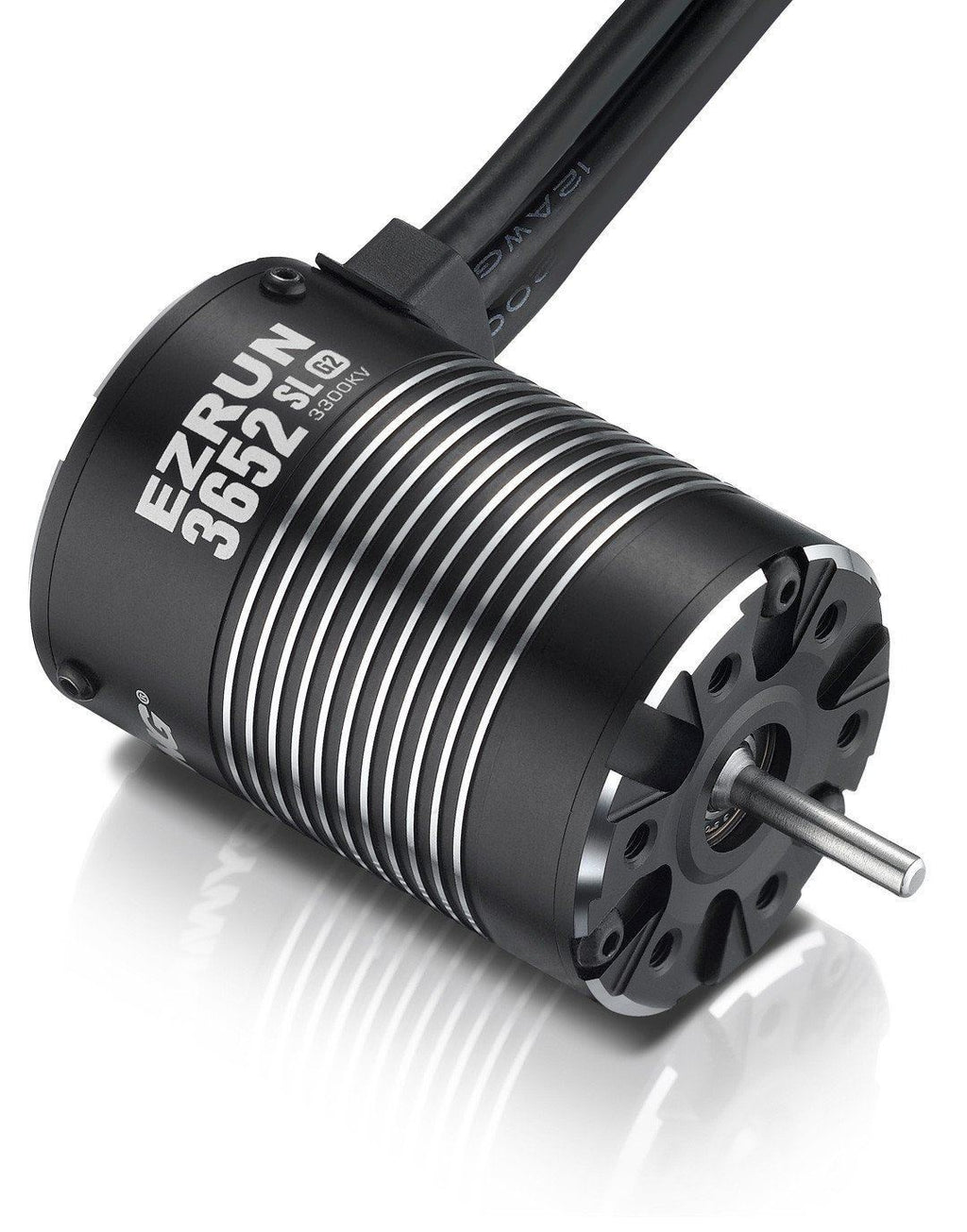

EZRUN 3652 SL Brushless G2 motor
Ezrun Series    3652 SL G2    3652 SL G2    3652 SL G2
KV    3300    4000
5400
P/n    30402600    30402601    30402602
LiPo    2-3S    2-3S
2S
R. (Ω)    0.0083    0.0060
0.0053
No-load
Current    4.3A    5.2A    7.2A
Timing (deg.)    0    0    0
Motor Diameter
& Length    Φ=36 / L=52    Φ=36 / L=52    Φ=36 / L=52
Shaft Diameter
& Length    Φ=3.17 / L=18.5    Φ=3.17 / L=18.5    Φ=3.17 / L=18.5
Motor Shaft Sleeve-Included    3.17mm<5mm
3.17mm<5mm
3.17mm<5mm
Pole    4    4    4
Weight (g)    218    216    217
Bearing size (Front / Rear ) : Outer dia. = 13mm, Inside dia.=5mm, Height = 4mm SKU: 30820022
