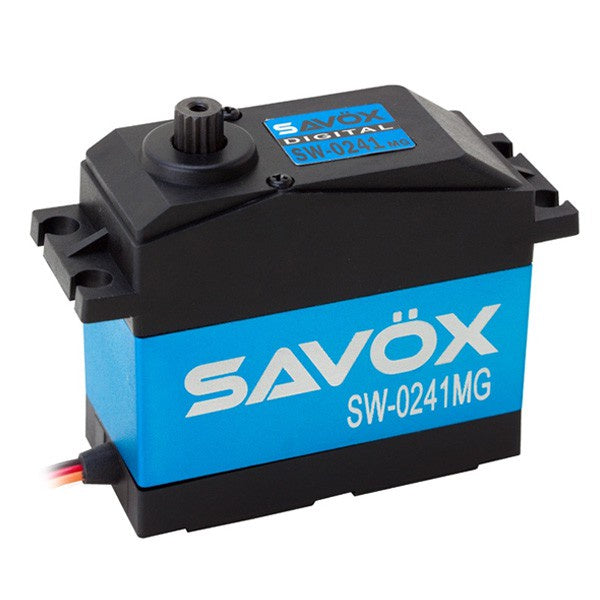

Savox #SW-0241MG 1/5 Size Digital Servo Water Proof
The SW-0241MG is a waterproof, large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.
Features:
Ideal for 1/5 scale off road, large scale boat and aircraft applications
Waterproof case design.
Strong metal gear train for added durability.
Specifications:
Torque @6v - 30.0kg/416.6oz-in
Torque @7.4v - 40.0kg/555.5oz-in
Speed @6v - 0.21 sec/60 deg
Speed @7.4v - 0.17 sec/60 deg
Dimensions L x W x H (mm): 65.8 x 30.0 x 59.1
Weight: 200.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 15 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
